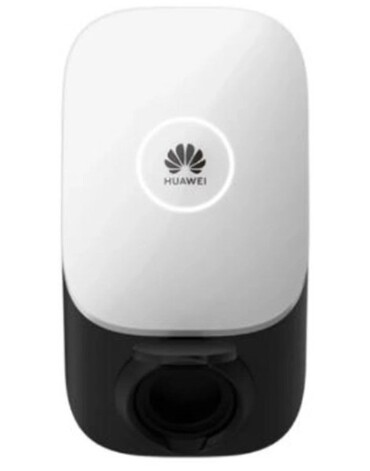

HUAWEI FUSION EV-Charger AC 22KW

Huawei Fusion ladestander - Residential Smart Charger - AC
3 Faset 22kW/32A - SCharger-22KT-S0

Key Feature
Green Power Preferred
3 to 1 Automatic Phase Switch
One-fits-all APP
3 Ways Authentication
3 Steps Installation
Dynamic Charging Power

Accessories: RFID Card * 2 (Included)

Technical Specification SCharger-22KT-S0
Inputs and outputs
Charge power 1.4 kW to 22 kW (configurable)
Nominal voltage 400 V (3-phase) ± 20%
Nominal current 6–32 A (3-phase or 1-phase)
Nominal frequency 50 Hz/60 Hz ± 1 Hz
Vehicle connection Type 2 socket
Mains supply types TN, TT

Communications :
Protocol Modbus TCP
Wi-Fi / Ethernet
Charger status WRGB LED, App
RFID (ISO-14443-A), App, Bluetooth
Remote control & monitoring : App
Working mode :
Normal Charge
Scheduled Charge
PV Power Preferred

Protection
Residual current protection (RCD) Type A(30mA) DC 6 mA integrated

Dimensions (HxWxD) 335 mm x 180 mm x 145 mm
Weight 3,1 kg
Enclosure degree IP54
Impact protection level IK10

Standard :
EN 61851-1 2019, IEC 62955:2018, IEC 61008-1 2010, IEC/EN 62196-1
